Description
- Origin: Mainland China
- Model Number: AC380V/50HZ
- Condition: New
- CNC or Not: CNC
- Range of Spindle Speed(r.p.m): 1 – 24000 rpm
- Positioning Accuracy (mm): 0.01 mm
- No. of Spindles: ATC
- Working Table Size(mm): 1300*2500
- Machine Type: CNC Router
- Travel (X Axis)(mm): 1300 mm
- Travel (Y Axis)(mm): 2500 mm
- Spindle Motor Power(kW): 9kw atc cnc wood machine
- Dimension(L*W*H): 1300*2500*200mm atc cnc router or customized
- Power (kW): 13252130
- Weight (KG): 1800
- Warranty: 2 years for atc cnc router machine
- Key Selling Points: Sustainable
- Machinery Test Report: Provided
- Warranty of core components: 2 years
- working area: 1300*2500*250mm OR 2100x3000mm cnc machine atc
- spindle: 9KW HQD air cooling spindle

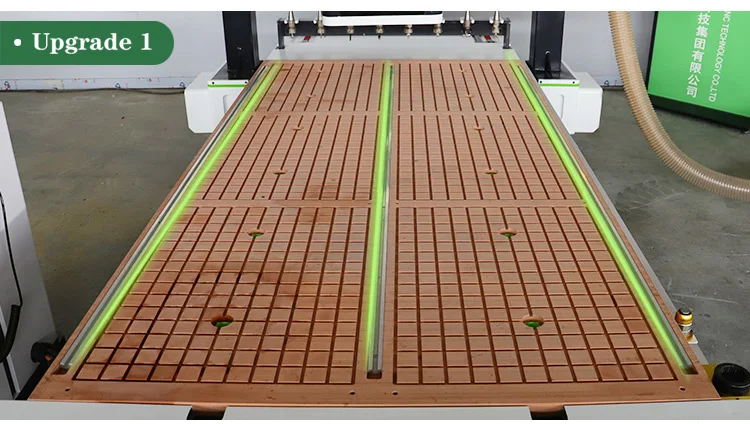

- table: Vacuum Suction with T-slot Table
- XYZ Structure: XY-helical rack pinion,Z-ball screw
- lubrication system: automatic lubrication system
- operating system: LNC control system
- Keywords: atc wood cnc router
- Application: MDF WOOD ACRYLIC ALUMINUM
- Function: Cutting Engraving Carving Milling
Product Description

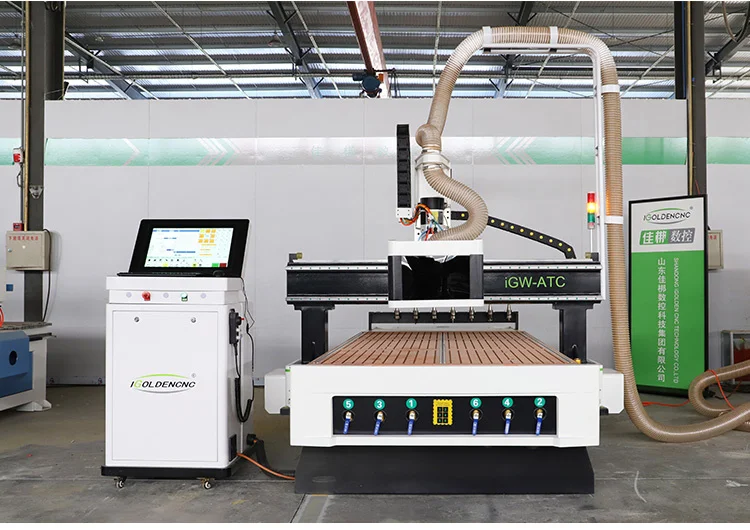

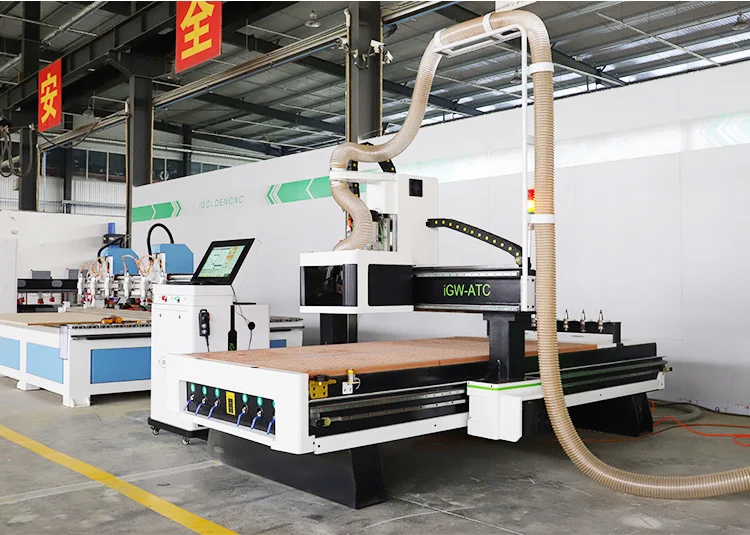

1325 atc cnc router 1530 2030 2130 3d wood cutting machine woodworking machinery with linear or carousel tool changer

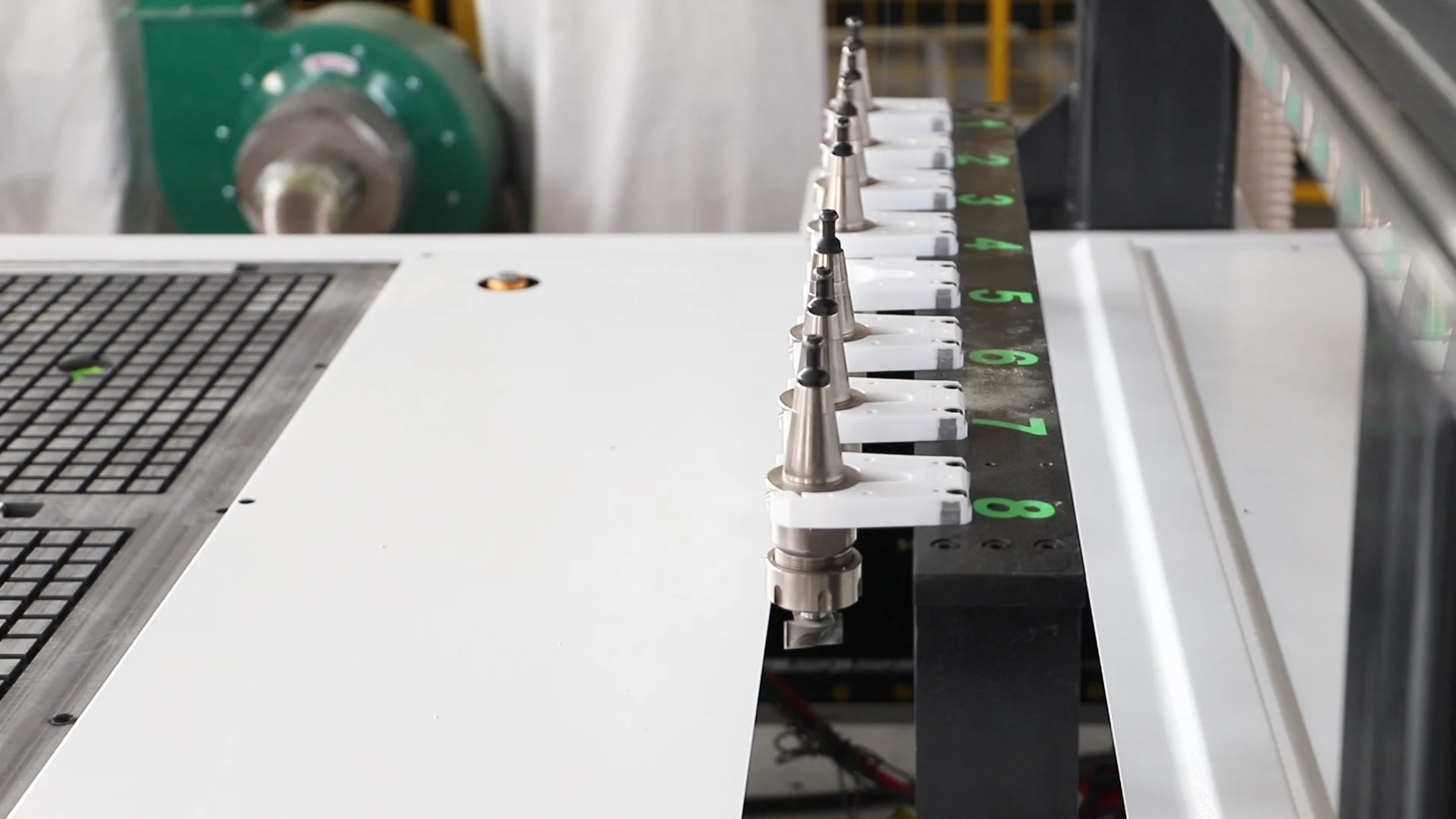

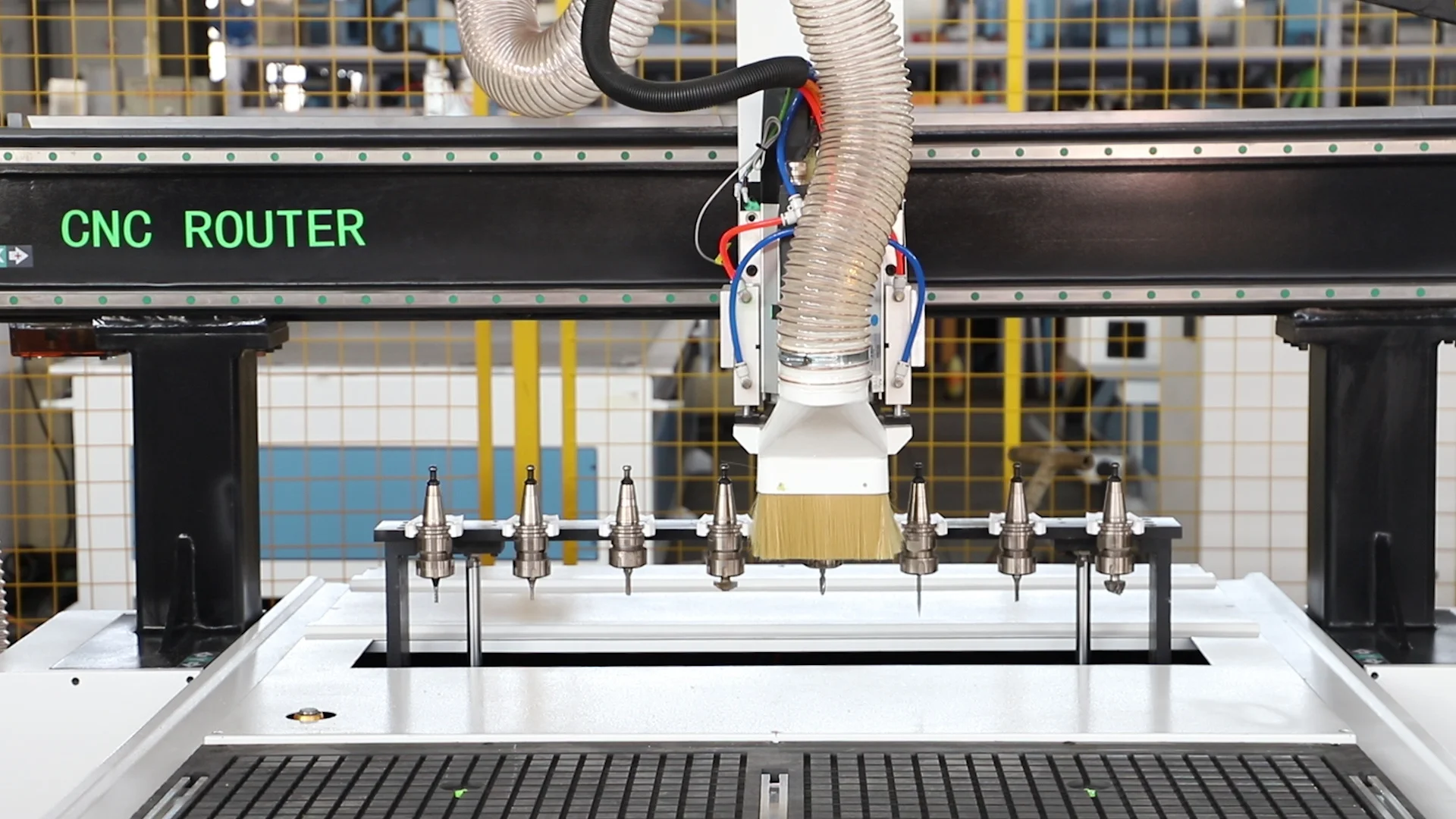

Automatic tool changer (ATC) CNC Router machine is suitable for the processing of various complex products or a variety of processing. It can be equipped with 6, 8, 10, 12 tools according to the different production process requirements of customers. There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.
Specification
|
Model
|
iGW-ATC-1325
|
|
Working area
|
1300*2500*250mm
|
|
Spindle
|
HQD 9.0kw Air Cooling ATC Spindle
|
|
Max. Running Speed
|
50000mm/min
|
|
Max. Working Speed
|
30000mm/min
|
|
Repositioning Accuracy
|
0.02mm
|
|
Machine Body
|
T-type Welding Structure
|
|
Gantry
|
Steel Structure
|
|
Worktable
|
Vacuum Suction with T-slot Table
|
|
Guide Rails
|
Taiwan HIWIN
|
|
Ball Screw
|
Taiwan TBI
|
|
Driver
|
Servo Drive and Servo Motor
|
|
Reducer
|
Japan SHIMPO
|
|
Frequency Converter
|
Taiwan Fuling
|
|
Electrical Components
|
France SCHNEIDER
|
|
Control System
|
Taiwan LNC
|
|
Working Voltage
|
380V/50Hz
|
Details Images
Optional

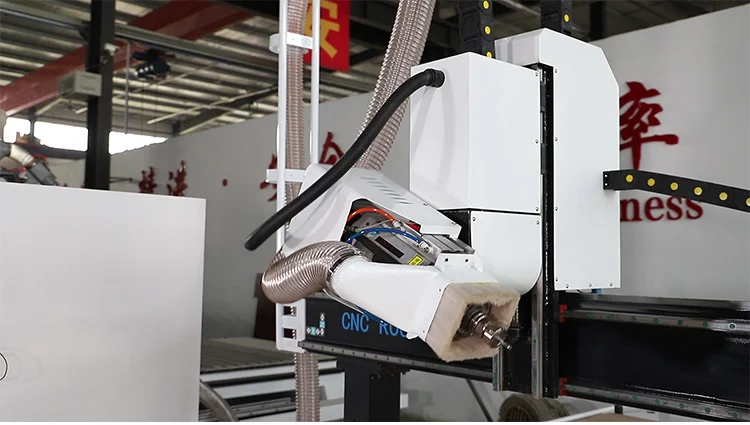

optional 1: atc cnc wood machine with spindle swing

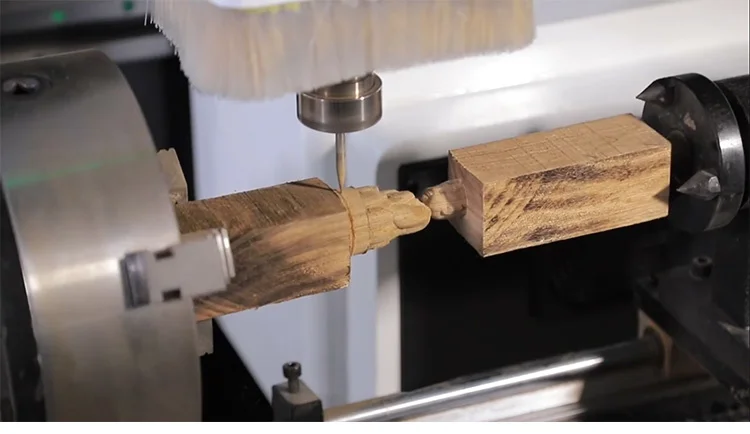

optional 2 : atc cnc wood machine with rotary device
optional 3 : atc cnc wood machine with lift tools
Samples
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood
panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables,
panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, , forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables,
panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, , forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.

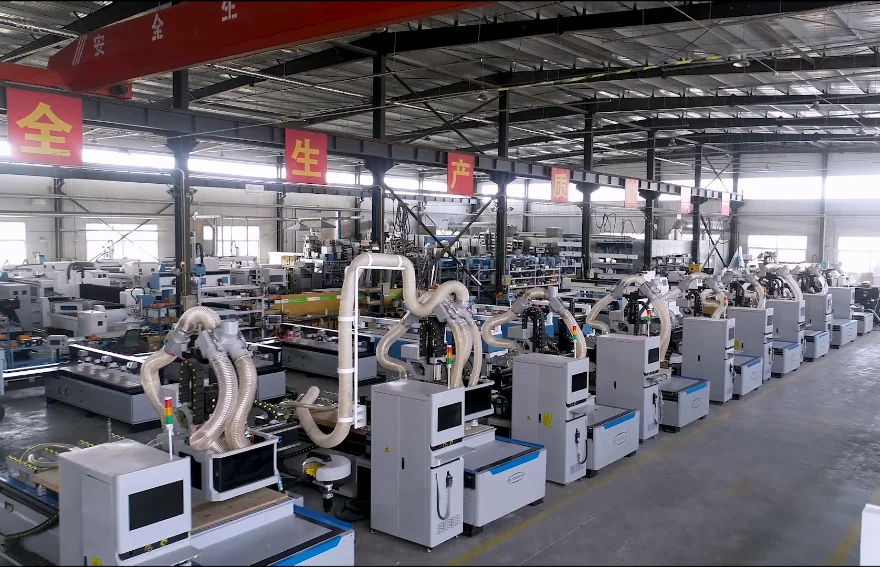

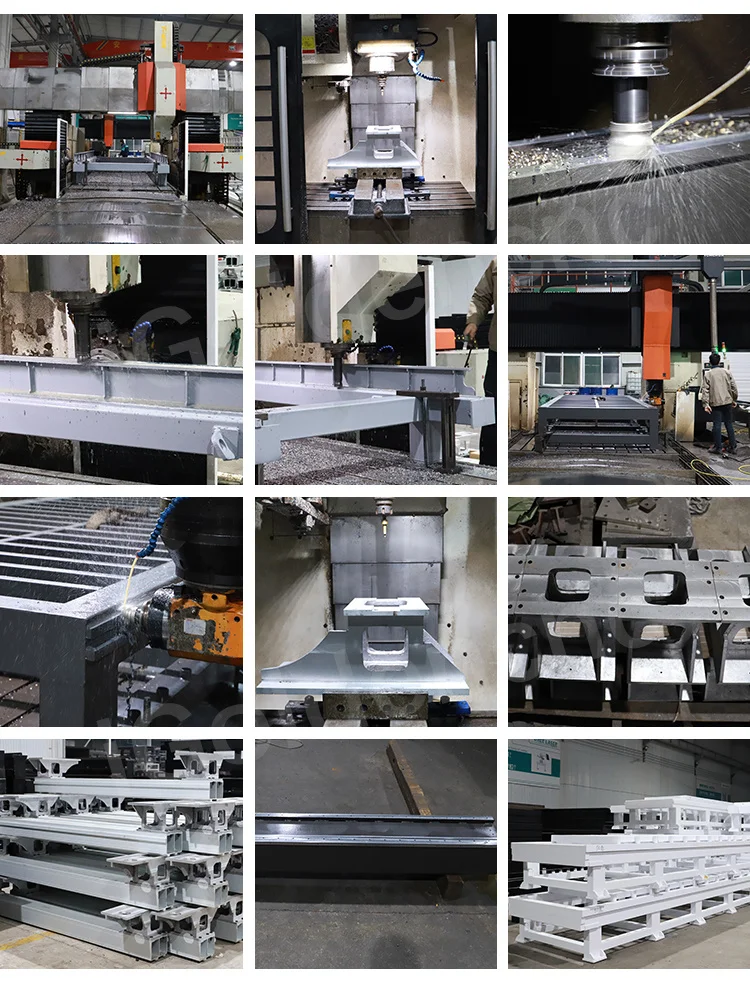

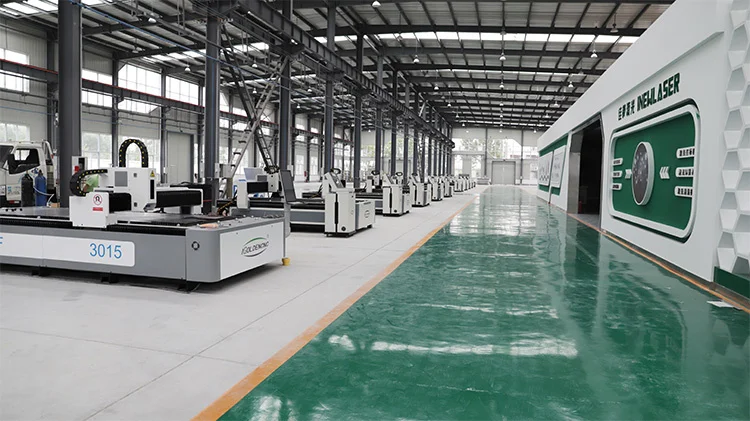

Manufacturing Technique
Company Profile

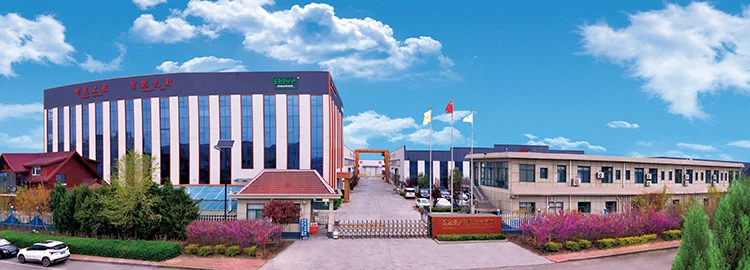

shandong igolden cnc technology co. ,ltd established in 2012, one the top CNC machine manufacturer from China, the professional solution supplier of CNC application with key technology and independent intellectual property rights. The company integrates research and development with production, sales and after-sales.
Product lines cover 7 series and more than 100 models, include CNC Wood Router, Eps Foam CNC Machine, Stone CNC Machine, Furniture and Cabinet Door Making Machine, Fiber Laser Cutter, Laser Engraver, Laser Marker, CNC Plasma Cutter, and CNC kits, tools and accessories. We always provide customers with high-quality products, competitive price and excellent service.
